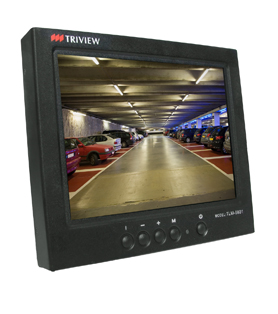

Tatung TLM-0801
Tatung TLM-0801

Tatung TLM-0801

Tatung TLM-0801
Click to enlarge image(s)
SPECIFICATIONS:
Screen Size: 8 inch
Viewable size: 162 mm (H) x 121.5 mm(V)
Aspect ratio: 4:3
Dot Pitch: 0.2025 mm x 0.2025 mm
View angle H/V: -70°, +70°/-70°, +60°
Contrast ratio: 500:1
Brightness: 250 cd/m2
Resolution: 800 x 600
Response Time: 50 ms (tr:10ms, tf:25ms)
Display Color: 262K

VIDEO
Input: Composite video, connector: 2 BNC
Level: 1.0Vp-p / 75Ω
Output: 2 BNC connector for CVBS loop-through output,
OSD: Contrast, Brightness, Display Adjust, Color, OSD Setting, Apect Ratio, Language, Audio Control, Input Select, Reset, Exit
System Compatibility:
Scanning Frequency
NTSC : 15750Hz ± 500Hz / 60Hz,
PAL : 15625Hz ± 500Hz / 50Hz

AUDIO
Input: Connector: 1 x RCA
Level: 1.0Vp-p / 1 Khz
Output: Connector: 1 x RCA
Speaker: 1W x 1 embedded

POWER SUPPLY
Input-Voltage: 12VDC Power (Power adaptor)
Consumption: 7 W max.

Control key define: -, +, Menu, Power
Dimensions: 202 mm (w) x 175 mm (h) x 29.2 mm (d)

RoHS compliant

Note: Specification are subject to change without notice.
