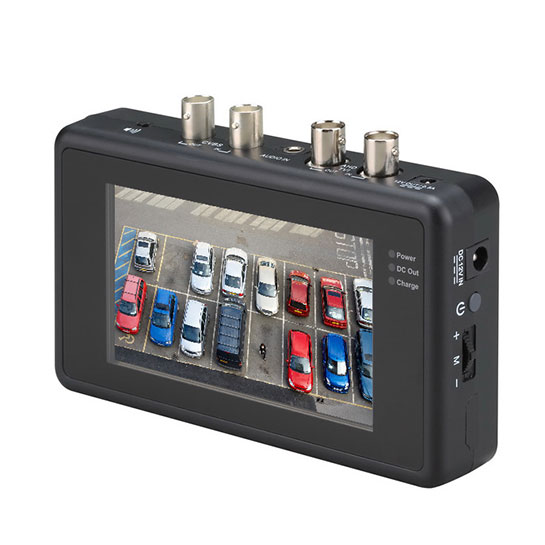

Tatung TOM-043A
Tatung TOM-043A

Tatung TOM-043A

Tatung TOM-043A
Click to enlarge image(s)
SPECIFICATIONS:

Screen Size: 4.3 Inch
Backlight System: OLED
Resolution: 480 x 272

Brightness: 250 cd/m²
Viewing Angle (L/R/U/D): 80º/ 80º/ 80º/ 80º/
Aspect Ratio: 16:9
Contrast Ratio: 10,000:1
Response Time: 2ms
Input Connectors: BNC In (Analog HD) x 1; BNC In (Standard CVBS) x 1; Audio (Phone Jack (Stereo Audio Input) x 1

Output Connectors: BNC Out (Analog HD) x 1 Loop-Thru; BNC Out (Standard CVBS) x 1 Loop-Thru
Internal Battery: 7.2 VDC/2600 mAH Li-Ion Battery
Power Input: 12 VDC/3.0A Max. (Charging)
Power Consuption: <6.5 Watts
Charging Time:  4 Hours Average
Operating Time (Continuously): 4 Hours

Net Weight: 0.5 lbs
Gross Weight:  2 lbs

Specifications subject to change without notice
