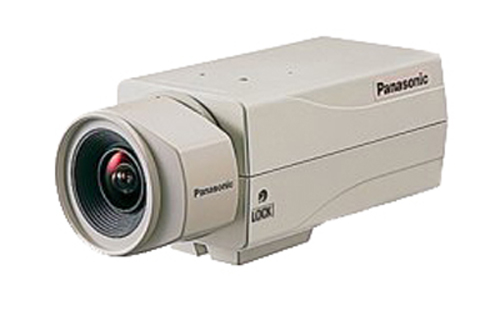

Panasonic WV-BP142
Panasonic WV-BP142

Panasonic WV-BP142

Panasonic WV-BP142
Click to enlarge image(s)
The WV-BP140 Series black and white cameras emphasize high resolution and sensitivity and employ advanced image adjustment functions producing flexibility. By utilizing a 1/3-type CCD (251,000 pixels), horizontal resolution is 380 lines, with a low 46dB S/N ratio. Minimum illumination of 0.08 lux (0.008 fc) is achieved when used with a F1.4 lens. This camera has various image adjustment functions including Backlight Compensation (BLC) and Electronic Light Control. An ELC function allows for the changing of shutter speeds up to 1/120,000 second. This allows for sharper images, even in limited lighting conditions.
The WV-BP140 Series is the perfect addition for CCTV surveillance applications.

• 1/3-type CCD pick-up element with 510 (H) x 492(V) pixels provides 380 lines of horizontal resolution

• Minimum illumination of 0.08 lux (.008 fc) at F1.4

• Advanced Electronic Light Control (ELC) allows for the use of fixed iris lenses

• Selectable Back-Light Compensation feature

• Selectable auto iris control from a video signal or DC control signal

• Accepts C-and CS-mount lenses


Product Specification Sheet
