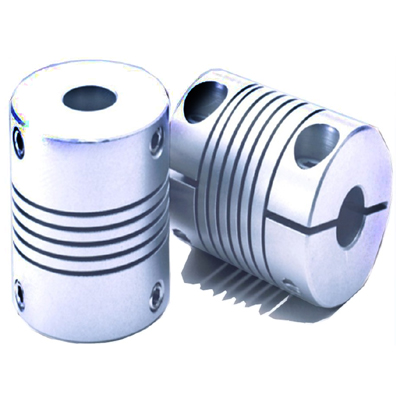

Helical H Series (Stainless Steel)
 |
| Click to enlarge image(s) |
Typical applications: For situations requiring a heavy duty coupling such as pumps, lead screws, and positioning systems; also for process equipment in industrial situations. Anywhere a rugged, tough, long-lasting coupling is needed.
Misalignment compensation: 5º angular, .010 inch parallel offset, .010 inch axial motion
Torque range: 2.4-100 lbin
Standard bores: 0.059-0.750 inch 1.5-19.05mm
Attachment: Clamp or set screw
Operating temperatures: Up to 600ºF
Speed (in the wind up direction): 10,000 rpm
