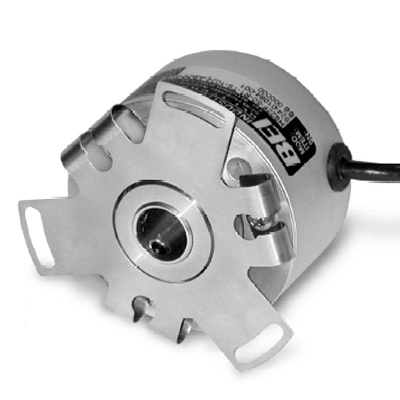

BEI  HS22 Incremental Hollow Shaft Encoder
BEI  HS22 Incremental Hollow Shaft Encoder

BEI HS22 Incremental Hollow Shaft Encoder

BEI  HS22 Incremental Hollow Shaft Encoder
Click to enlarge image(s)
The HS22 series of hollow shaft incremental encoder offers application advantages over conventional optical encoders. Designed for ease of installation to a servo motor, the encoder's flexible coupling fits over the driven motor shaft to provide an accurate, backlash-free method of attachment. This integral flex mount eliminates the need for couplings, sprockets, or gearing and provides for a 20-degree angular adjustment. Through-shaft or blind-shaft configurations of the HS22 are available. Standard outputs for both configurations include A and B in quadrature with index and optical commutation signals for brushless motor control.

Product Specification Sheet
