Lacey Harmer Laser Blazer 77
Lacey Harmer Laser Blazer 77

Lacey Harmer Laser Blazer 77

Lacey Harmer Laser Blazer 77
Click to enlarge image(s)

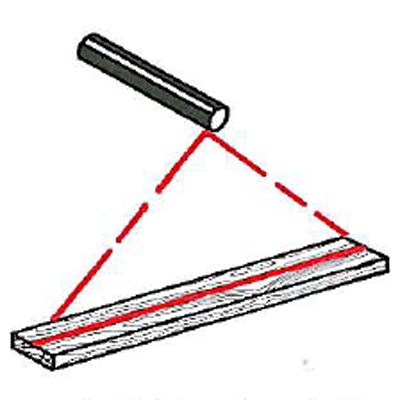

Laharco Helium-Neon Lasers - For the wood products, paper, textile, metal, food processing and many other industries, accurate cutting is crucial to productivity. Miscuts add up quickly to account for a significant waste factor. Laharco Laser Technology, with its many unique options and models to fit specific industry needs, can maximize yields. Look to Laharco, the industry standard for excellence. Features: The powerline lens, manufactured in-house by Lacey-Harmer Co., transforms the laser beam into a projected laser line, even in width and intensity from end-to-end. This eliminates the problem of a projected line which is wider in the middle and fades toward the ends. Quality of the lens and professional alignment produces a line "string-straight", second to none in the industry. Custom optics are designed to meet specific customer applications.

Laharco Lasers are available in a wide range of models for your best mounting configuration.

The User-Adjustable Intensity™ option allows mill personnel to install the laser and then fine tune the projected laser line for maximum operator visibility and more effective mounting.

Laser heads are mounted with a special shock absorbing materials and are 100% tested to meet Laharco's exacting standards for power output. Power supply units are installed with special protection against dirty line current, a major cause of power supply failure. This means greater reliability and longer laser life.

Superior construction throughout, from the rugged Schedule 40 Anodized aluminum housing, to the soldered electrical connections, to the airtight seal on every laser. Every attention to detail means you get a laser with the industry's highest reliability, backed by Laharco's Full Warranty.

Specifications: (Higher power & optional colors are available)

Power requirement 115VAC/60Hz
Power Consumption Less than 50 watts
Output power 5mW
Ambient temperatures -40º to 50º C
Environmental vibration Exceeds industry standards
Weight 5.5 pounds
Dimensions 2.25 inches diameter x 25.5 inches length
Light Source Helium-Neon laser
Casing Hermetically sealed anodized aluminum


Product Specification Sheet
