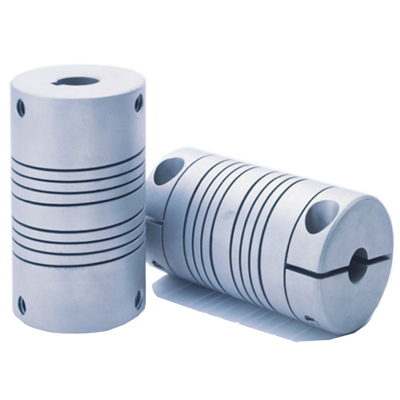

Helical MCA Series (Aluminum)
Helical MCA Series (Aluminum)

Helical MCA Series (Aluminum)

Helical MCA Series (Aluminum)
Click to enlarge image(s)
Description: A general purpose aluminum coupling, used where more parallel misalign-
ment is required. Has a large range of shaft sizes, with optional keyways.
Typical applications: Good for encoder/resolver applications, moderate torque pump, lead screw, and various other applications.
Misalignment compensation: 5º angular, 0.030 inch parallel offset, .010 inch axial motion
Torque range: 26-233 lbin
Standard bores: 0.250-.875 inch 6.35-22.23mm
Attachment: Clamp or set screw Keyways optional
Operating temperatures: Up to 200ºF
Speed (in the wind up direction): 3,600 rpm


Product Specification Sheet
