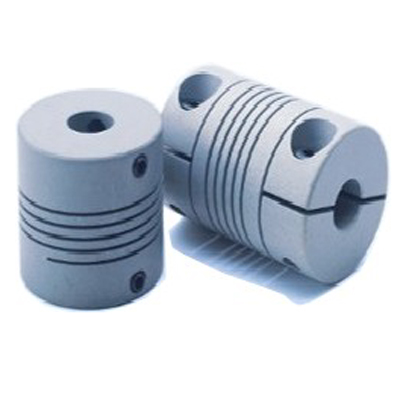

Helical W Series (Stainless Steel)
Helical W Series (Stainless Steel)

Helical W Series (Stainless Steel)

Helical W Series (Stainless Steel)
Click to enlarge image(s)
Description: Stainless steel version of the “WA(C)“ series, with higher torque capacity and torsional stiffness. Increased fatigue resistance with all metric dimensions and fasteners.
Typical applications: For situations requiring a heavy duty coupling, for pump, lead screws, and positioning systems. Also for process equipment in industrial situations. Anywhere a rugged, tough, long-lasting coupling is needed.
Misalignment compensation: 5º angular, 0.25mm parallel offset, 25mm axial motion
Torque range: 1.4-39 Nm
Standard bores: 3mm-38.1mm
Attachment: Clamp or set screw
Operating temperatures: Up to 300ºF
Speed (in the wind up direction): 10,000 rpm


Product Specification Sheet
